About this product

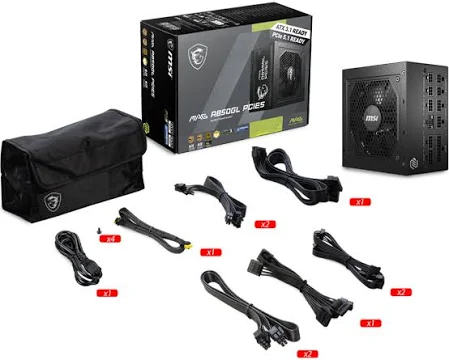

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency. Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside. The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables. Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
80 PLUS Rating - 80 Plus Gold
Certifications - Cybenetics Gold
Protection Features - UVP, OCP, OPP, OTP, OVP

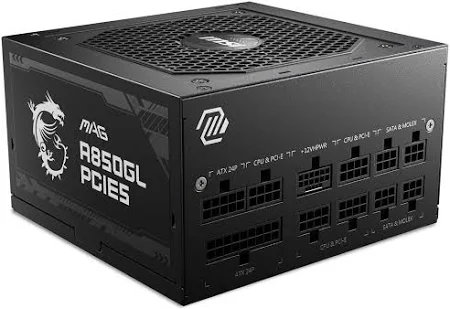

Connectors - SATA (15 pin) (x8), ATX (24 pin) (x1), EPS (4+4 pin) (x2), FDD (4 pin) (x1), PCI-E 5.0 (16 pin) (x1) (600W)
Supported Voltages - -12V
Supported Standards - ATX 3.0
Power Factor Correction - Active PFC
Peak Power - 1700W (up to 200% of the PSU's rated power for 100μs)
Load Regulation - Stable output voltage, Quick voltage adjustment for different usage scenarios
Output Wattage - 850 W
Rail Configuration - Single 12V rail
Maximum Current - 0.42 A (fan)
Input Voltage - 100 - 240 V
Input Current - 8 A (@110v)
Input Frequency - 47 - 63 Hz
Cooling Type - Air cooled
Fan Type - Fluid Dynamic Bearing
Lifetime - 10 Year Warranty
Dimensions - 140 x 150 x 86 mm (DxWxH)
Cable Length - 246 ft (2 x power 8 pin +12V with detachable 4 pin section modular cable)
Operating Temperature - Up to 105C (capacitor)
Highlighted Features - NVIDIA SLI supported
Top Use Cases - Gaming PCs
Typical Users - Gamers, PC builders
