| Model |

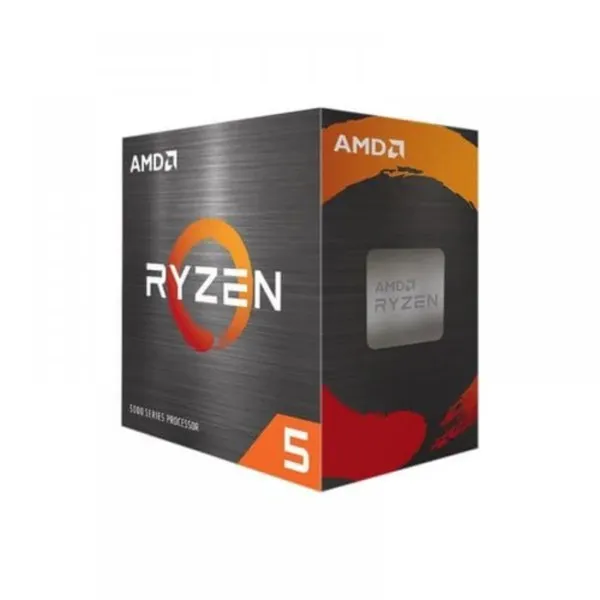

AMD Ryzen™ 5 5600F |
| Family |
Ryzen |
| Series |
Ryzen 5000 Series |
| Form Factor |
Desktops, Boxed Processor |
| Market Segment |
Mainstream Desktop |
| Regional Availability |
APJ |
| Former Codename |
Vermeer |
| Processor Architecture |
Zen 3 |
| # of CPU Cores |
6 |
| Multithreading (SMT) |
Yes |
| # of Threads |
12 |
| Max. Boost Clock |
Up to 4 GHz |
| Base Clock |
3 GHz |
| L1 Cache |
384 KB |
| L2 Cache |
3 MB |
| L3 Cache |
32 MB |
| Default TDP |
65W |
| Processor Technology for CPU Cores |
TSMC 7nm FinFET |
| Processor Technology for I/O Die |
12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size |
74mm² |
| I/O Die (IOD) Size |
125mm² |
| Package Die Count |
2 |
| Unlocked for Overclocking |
Yes |
| CPU Socket |
AM4 |
| Supporting Chipsets |
X570 , X470 , X370 , B550 , B450 , B350 , A520 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set |
x86-64 |
| Supported Extensions |
AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
| Max. Operating Temperature (Tjmax) |
95°C |
| *OS Support |
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) |
4 |
| Native USB 3.2 Gen 1 (5Gbps) |
0 |
| Native USB 2.0 (480Mbps) |
0 |
| Native SATA Ports |
2 |
| PCI Express® Version |
PCIe® 4.0 |
| Native PCIe® Lanes (Total/Usable) |
24,20 |
| NVMe Support |
Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type |
DDR4 |
| Memory Channels |
2 |
| Max. Memory |
128 GB |
| System Memory Subtype |
UDIMM |
| System Memory Specification |
Up to 3200 MT/s |
| Max Memory Speed |
2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| ECC Support |
Yes (Requires mobo support) |
| Graphics Model |
Discrete Graphics Card Required |
